Rob & Amy's Pond

Added by RobAmy
Create date Feb 2, 2014
Updated May 13, 2018

This is our self built pond. The pond is 18ft X 26ft the depth is 3ft at the deepest area with a 19ft stream. It has 3 pumps and 4 bio filters, 1 Bio filter with 22" waterfall and a large skimmer. Approximately 3500 gals.

Overview Discussion

Overview

This is our self built pond. The pond is 18ft X 26ft with a 19ft stream. It has 3 pumps and 4 bio filters and a large skimmer. Approximately 3500 gals. I took approximately 100 man hrs.

Pond panorama by Rob & Amy Lavoie, on Flickr

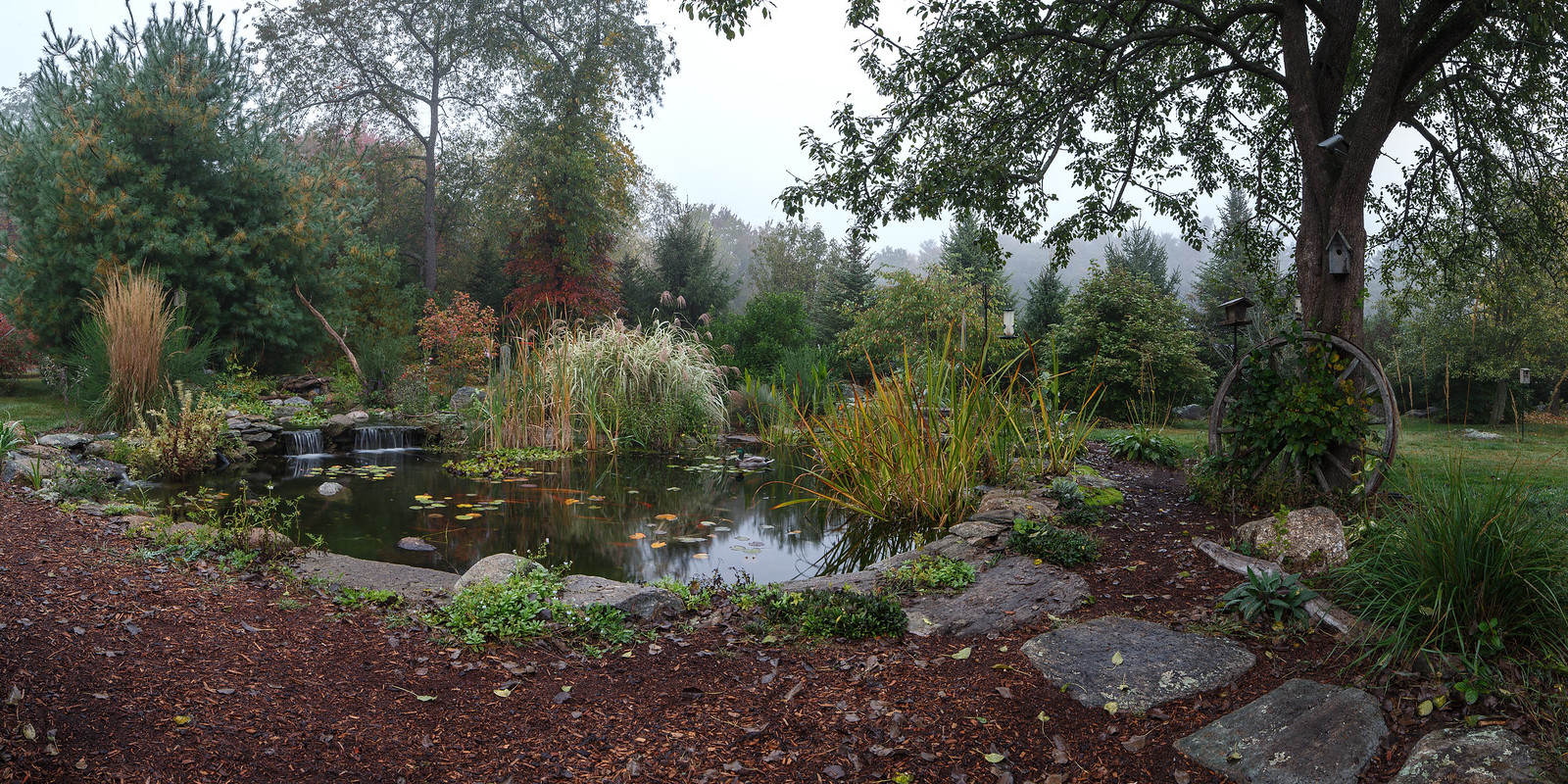

The pond with fall color and fog by Rob & Amy Lavoie, on Flickr

stream-gpf-jpg.73981

img_3271-jpg.70392

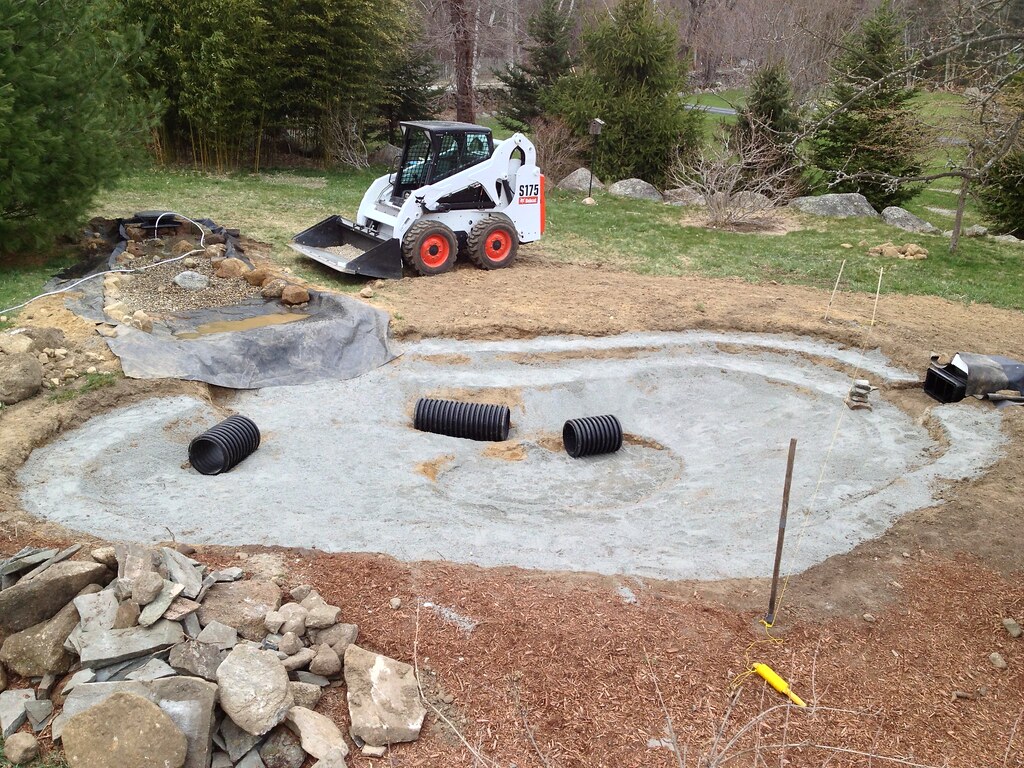

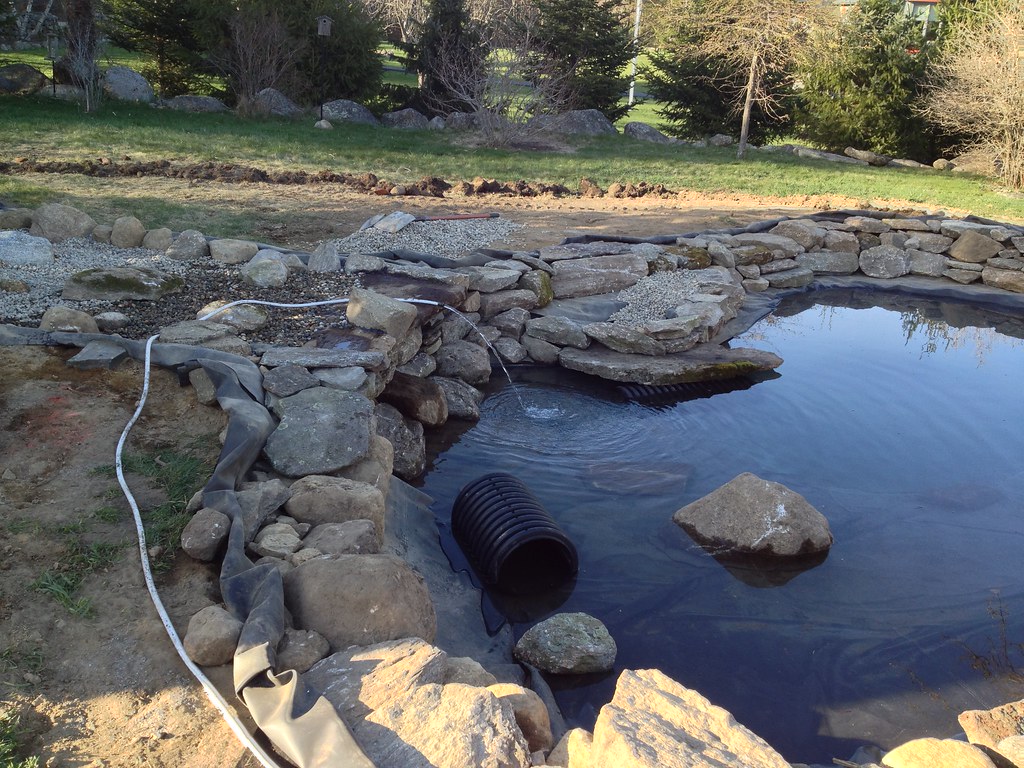

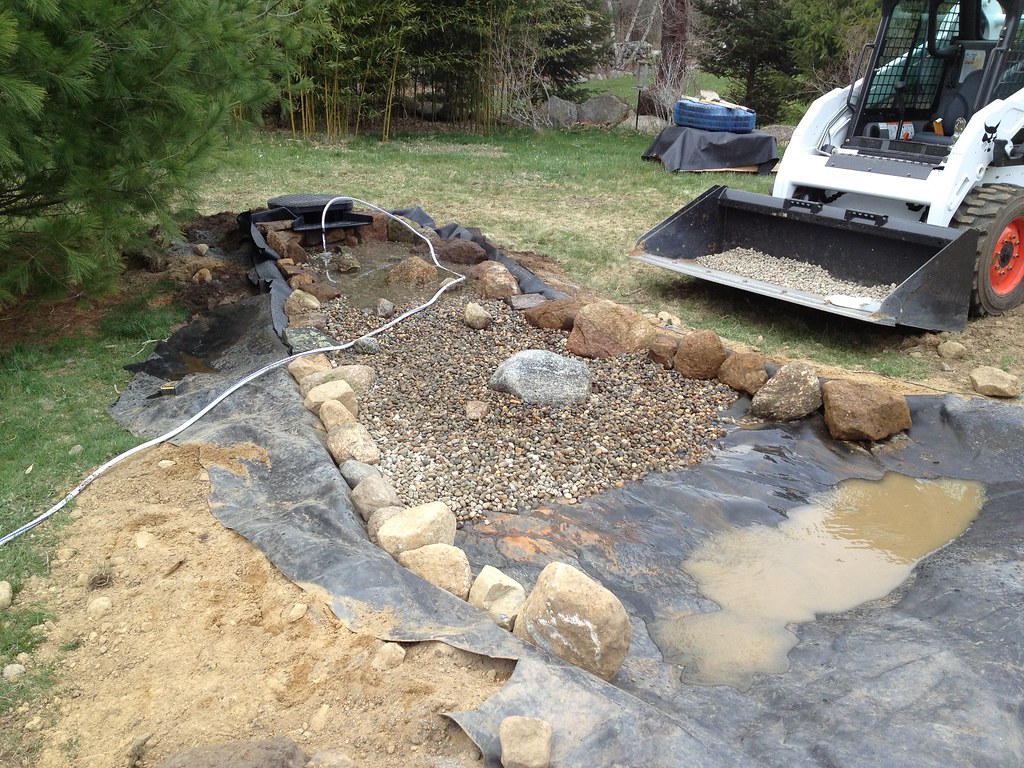

Planning and Construction

Our equipment is as follows:

1 Savio large skimmer with 16" weir
1 Savio Bio Waterfall bio filter with 22" opening
3 Savio versatile Bio Filters

2 Aqua Ultraviolet 57 watt UV's for Savio Skimmer

2 pond master 1800 gph pumps going to the bio filters. One is going to 2 inline bio filters and the second is going to the third bio filter.

1 ShinMaywa Norus 50CR2.25S Pump - 4800 GPH Submersible Pump in the large skimmer piped to the waterfall bio filter.

2 Laguna air pumps, I use only one for the winter months

All piping was done with PVC flex pipe 1 1/2" and 2" piping totaling around 200ftwith PVC fittings and ball valves.

Total of 9 lights. 4 underwater and 5 above water all controlled with a control unit by cal pumps

Added a Beckett 130 gph pump to a small water feature I built on the edge of the pond

IMG_2007 by Rob & Amy Lavoie, on Flickr

IMG_2011 by Rob & Amy Lavoie, on Flickr

IMG_2012 by Rob & Amy Lavoie, on Flickr

IMG_2017 by Rob & Amy Lavoie, on Flickr

img_2018-jpg.66833

IMG_2021 by Rob & Amy Lavoie, on Flickr

Here is 2 of the Savio Versatile Filters installed inline

img_3086-jpg.68252

Custom cover for my 2 air pumps

img_3132-jpg.69146

Here is a picture of all three bio filters under the white pine tree

img_3217-jpg.70521

This is the third Bio Filter that pumps into the stream which you can see on the bottom right of the picture

img_3216-jpg.70522

image-jpg.71994

Small water feature on the edge of the pond with 130 gph pump in the skimmer box

img_4654-jpg.80008

Fish / Plant Stock

I have a few Koi and goldfish, frogs and pets in the pond. A baby snapping turtle moved in this winter too.

snapping-turtle-jpg.65679

img_2995-jpg.67856

img_2996-jpg.67857

img_2997-jpg.67858

img_3001-jpg.67859

fish-2-jpg.68251

img_3222-jpg.69803

img_3231-jpg.70523

img_3187-jpg.69407

yellow-warbler-gf-jpg.70725

frog-at-the-pond-gf-jpg.70726

frogs-gf-jpg.70727

pond-frog-gf-jpg.70728

cedar-waxwing-on-water-hyacinth-gf-jpg.70729

ducks-in-the-stream-jpg.71133

koi-up-close-gp-jpg.71301

goldfish-and-koi-gp-jpg.71300

male-mallard-gp-jpg.71302

bullfrog-gp-jpg.71303

img_3364-jpg.71395

bullfrog-gpf-jpg.72615

iris-gpf-jpg.72616

koi-jpg.73217

admiring-the-falls-jpg.73717

black-eyed-susan-jpg.73718

dragonfly-jpg.73719

frog-and-lily-jpg.73720

frog-jpg.73721

koi-and-goldfish-jpg.73722

lily-jpg.73723

yellow-lily-jpg.73724

yellow-warbler-gpf-jpg.74384

catbird-with-a-berry-gpf-jpg.74385

am-i-cute-or-what-gpf-jpg.74540

cedar-waxwing-in-the-stream-gpf-jpg.74752

lily-and-a-bee-gpf-jpg.75316

feeding-the-koi-gp-jpg.79994

koi-gp-jpg.79995

Dragonfly by Rob & Amy Lavoie, on Flickr

Mom and Ducklings by A & R Photography, on Flickr

After the Rain by A & R Photography, on Flickr

Snake at the pond's edge by A & R Photography, on Flickr

A video of a few of the fish

https://flic.kr/p/set-72157634025922619
A video of the fish under the surface of the pond with ice on the top

https://flic.kr/p/set-72157634025922619
Koi and Goldfish video April 2014

First feeding of 2015 video

Videos

Video of the stream and pond

http://www.flickr.com/photos/robamyphotos/8998223070/in/set-72157634025922619/

Video of the first snow dusting

http://www.flickr.com/photos/robamyphotos/11198202526/in/set-72157634025922619

Video with a bit more snow

http://www.flickr.com/photos/robamyphotos/11562979815/in/set-72157634025922619/

Video of Ducks visiting the pond

Another video of Mr's Mallard at the pond

Koi and Goldfish video

Underwater video with 2 new koi in it

Video of me hand feeding the Mallard Duck

Video of ducks in our stream

Video of our pond, stream, flowers, fish, frogs and more

Video of the pond and fish underwater with the new platinum butterfly

Video of Hand feeding the Koi & Goldfish

Video of the stream and fish under the water

Video of birds visiting the stream

Our Pond 2015

New pond video 2016

A Winter's Stream 2017
