moved my filter

Joined
Apr 3, 2009
Messages
490
Reaction score
19
Location
marlton nj
Well I finally got around to moving my filter and adding another drum. Took some pictures, don't forget to read the text between the pic's.

Ok this is before I started.

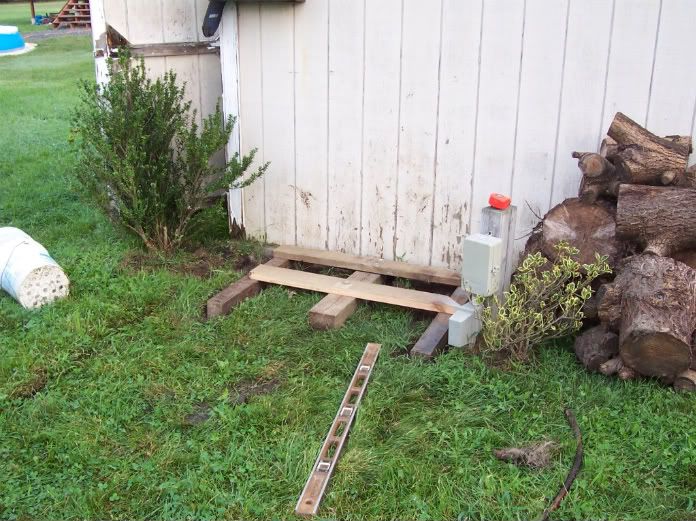

This is where I moved them to next to the shed.


Heated pipe and put a slight bend to eliminate 1 fitting.


Started digging, I couldn't go too deep due to sprinkler pipe.

Joined
Apr 3, 2009
Messages
490
Reaction score
19
Location
marlton nj
Filters in place.


Pipes done to pond. Notice the tee? I'm gonna use that to get the water out for the cold winter months so i don't break the pipe.

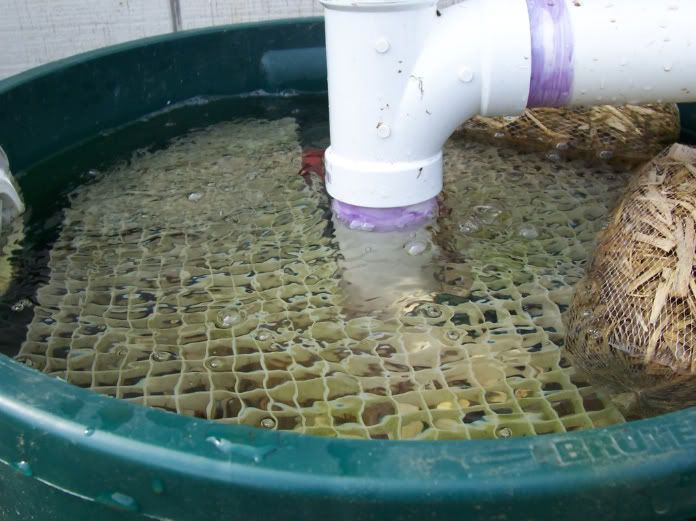

Something I did with my design in the bottom helps it make bubbles in the filter. I'll explain in a bit.


Better flow now that I tee'd off the uv light.

Joined
Apr 3, 2009
Messages
490
Reaction score
19
Location
marlton nj
Ok for the bubbles I just happened to cut the bucket i put in the bottom the same size as the raised part on the bottom of the can. I drilled holes on the side of the bucket at 45 degrees, 7/8" holes 4" up from bottom all the way around. The bucket sealed itself on the bottom and i just dumped the 2" pipe about 3" into the top. For some reason it is making bubbles on the way up.


DrCase

Moderator
Moderator
Joined
Dec 29, 2007
Messages
4,400
Reaction score
788
Location
Arkansas
Hardiness Zone
7a
It looks good..
bending the pipe is better when they dont make a fitting..
And The bubbles are a bonus

Joined
Apr 3, 2009
Messages
490
Reaction score
19
Location
marlton nj
i'll post a couple more pictures when i finish the area where the filter used to be and put down the new mulch

Joined
Apr 3, 2009
Messages
490
Reaction score
19
Location
marlton nj
I'm using this pump stroppy. It is a 1200gph. The water is spending just under 6 min in filtration by the time it gets out of the second tub.

Joined
Apr 3, 2009
Messages
490
Reaction score
19
Location
marlton nj
Here's the pictures of the finished area where the filter used to be.



and a shot of the yard since i just got done the mulch and mowing the grass.
