I had been unhappy with the amount of water flowing down my falls this year. Last year there seemed to be a lot more water flowing down and I was using a bigger pump this year. Last year the pump would only take 1" ID hose with a hose barb but I used 1 1/4" hose and slipped it on the threaded outlet. Well I did some checking about my new pump (Tetra 3600 high flow magna drive) and figured out that I could use 1 1/2" PVC pipe. Finally got it done today. Will post pics later on how it turned out. I also took the time to fill in some gaps with waterfall foam since I had the pumps off.

Ad

Advertisements

brandonsdad02

They call me Ryan
Joined
Sep 15, 2011
Messages
863
Reaction score
423
Location
Indianola Iowa zone 5a-5b
As I said earlier...here are some pictures..Sorry they are so big.

This is coming out from the top of the pump and thru the skimmer box. I did all of the pipe in 1 1/2" PVC


I tried to use as many long sweep 90s as I could, but there were 2 places I didn't have room




This is looking from my skimmer box up towards the filter. Its not flat ground so it was a bit of a challange to get the pipe to lay the way I wanted it to


This is coming into the top of the skippy filter

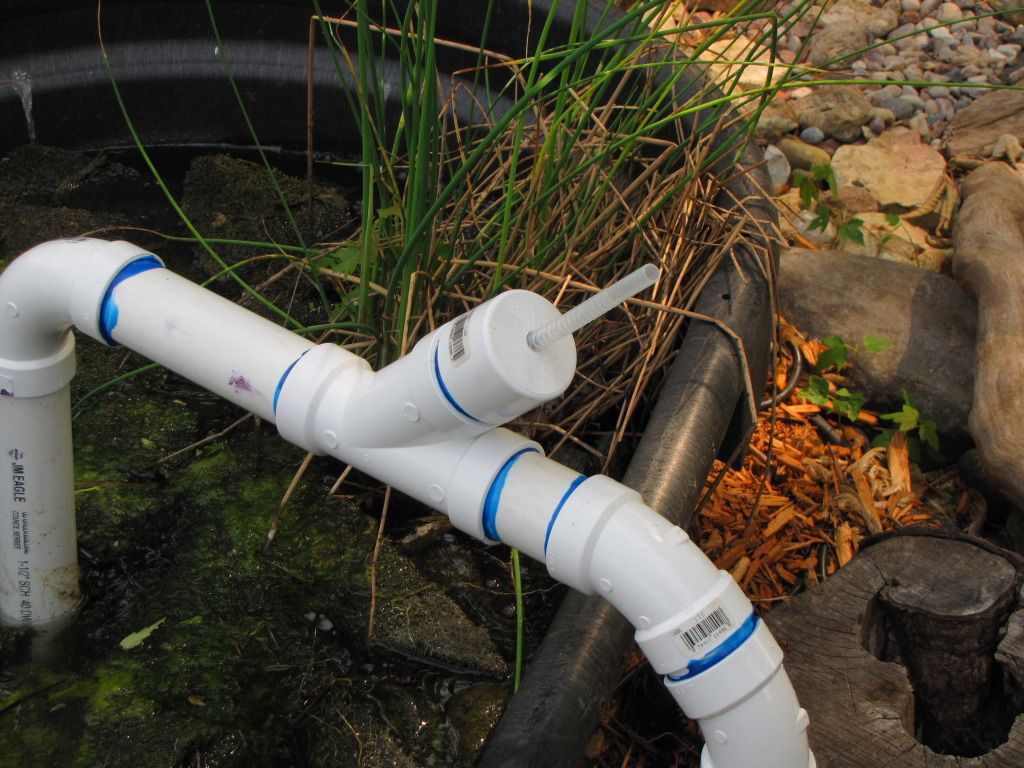

I even added a venturi. Works great and it was easy to make


And this is what I used to get my pipe to bend. When I was a electrician, we used a thing called a hot box to heat up our pvc to make bends in it. I just heated up the pipe on my grill, ran over and formed it how I wanted it, let it cool and moved on to the next section. I used one 10' piece of pipe after getting out of the skimmer box area up to the filter.


brandonsdad02

They call me Ryan
Joined
Sep 15, 2011
Messages
863
Reaction score
423
Location
Indianola Iowa zone 5a-5b
Yes grill was on high and I had the lid closed turning the pipe constantly.

WB...sand would take too long to heat up. The only time we used sand when bend pvc was on 4" and bigger. I did commercial electrical work. Mostly new construction and mainly schools.

I still have to paint the pipe and then hide it. Took about 2 hrs to do all the pipe.

Ad

Advertisements

addy1

water gardener / gold fish and shubunkins
Moderator
Donor
Joined
Jun 23, 2010
Messages
43,392
Reaction score
27,951
Location
Frederick, Maryland
Showcase(s):
1
Hardiness Zone
6b
Country
United States
Explain your venturi, looks like a cap with a straw sticking out of it! What steps did you take to do that?


brandonsdad02

They call me Ryan
Joined
Sep 15, 2011
Messages
863
Reaction score
423
Location
Indianola Iowa zone 5a-5b
It's a regular plumbing wye with the water flowing thru the straight part. I cut a small piece of pipe to glue the cap on. I used a straw from a cup we got from the hospital. I drilled a 3/8 hole in the cap just big enough to put the straw in. I stuck the straw in so it was half way in the straight part so that as the water flows thru the pipe, it will suck air in and aereate the water as it enters the bottom of the filter. The good bacteria will then have oxygenated water to feast on along with the plants in my skippy.


addy1

water gardener / gold fish and shubunkins
Moderator
Donor
Joined
Jun 23, 2010
Messages
43,392
Reaction score
27,951
Location
Frederick, Maryland
Showcase(s):
1
Hardiness Zone
6b
Country
United States
Well that is really neat! Quick and easy. Fantastic job.

Ad

Advertisements

taherrmann4

Tmann
Joined
Mar 3, 2011
Messages
3,142
Reaction score
699
Location
Louisville KY
Hardiness Zone
6
Country
United States
Adding a check valve should be easy enough to do. Put it right before your last 90 degree that goes up and over your filter. I used a sump pump check valve for my bog.


waynefrcan

19 years ponding and hopefully 4 more!
Joined
Jul 27, 2012
Messages
1,212
Reaction score
334
Location
Canada
Hardiness Zone
4a
Country
Canada
You do know there is flexible pvc pipe for ponds?


DrCase

Moderator
Moderator
Joined
Dec 29, 2007
Messages
4,400
Reaction score
787
Location
Arkansas
Hardiness Zone
7a
The venturi should break the back siphoning effect out of the filter

Ad

Advertisements

sissy

sissy
Joined
Jan 17, 2011
Messages
32,914
Reaction score
15,542
Location
Axton virginia
Showcase(s):
1
Hardiness Zone
7A
Country
United States
pool hose works and so does sump pump hose .It depends on the size you need .I have been using sump pump hose ,cheap to replace and since it does not get to cold here most times it works good .Been using it for over a year .Pool hose is stronger and can take more abuse .It would also depend on your winters and if you are going to change things now and then .I find it easier with flexible hose for me ,but thats me ,not every one .


waynefrcan

19 years ponding and hopefully 4 more!
Joined
Jul 27, 2012
Messages
1,212
Reaction score
334
Location
Canada
Hardiness Zone
4a
Country
Canada
I used a pond pipe that is called Tiger flex [from USA I think}. Costs more money but is well made and thick walls. Yes a cheaper flex hose at H-depot for example might have collaspe issues or leaks etc.

Joined
Jul 15, 2012
Messages
1,678
Reaction score
862
Location
Southern Indiana, US Zone 6b
Brandon that is awesome I had no idea you could bend PVC like that! Saves on couplers and angles huh? I've been wanting to move my filters to my garage, that will be a great way to do it? I also see that you do not have the pipe buried, can I bury the pipe or should I find a different place to run the pipe? Could I use the venturi on my up flow bio, haven't started my bog yet :( hopefully soon.
